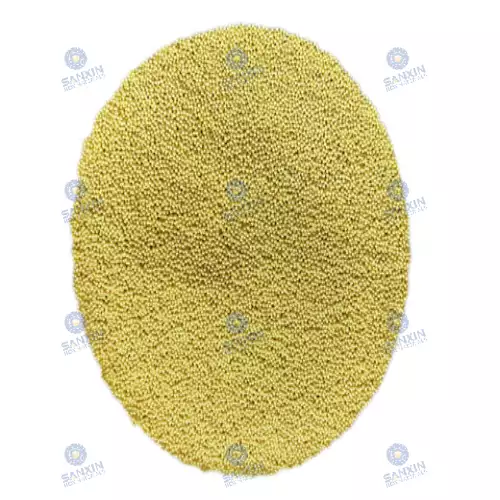

Ceria Zirconia Beads for Automotive Coating Pigment Dispersion and Color Stability

ceria zirconia beads for automotive coating pigment dispersion are used when fine grinding must combine efficient energy transfer with controlled wear and low unwanted contamination. A reliable specification connects ceramic composition and bead diameter to the mill, formulation, separator, target particle size, analytical limits, and repeat-order quality.

Why this grinding media is evaluated

ceria-stabilized zirconia beads combine high density, hardness, fracture resistance, and a smooth surface. Density supports impact and shear inside a bead mill, while controlled microstructure helps reduce abnormal breakage. Buyers should compare processing time, energy, media consumption, cleaning, contamination, and batch repeatability instead of evaluating purchase price alone.

Application requirements

Automotive coating pigment systems can combine high solids, demanding color strength, tight grind-gauge targets, and strict appearance requirements. CSZ media is considered where high density and toughness can improve dispersion, but bead diameter, separator gap, slurry circulation, cooling, resin chemistry, and cleaning procedures must be evaluated together.

Share the mill model, chamber volume, rotor type, separator gap, current media, feed particle size, target fineness, slurry viscosity, solids loading, temperature limit, atmosphere requirement, and expected throughput. These details allow a supplier to recommend a realistic bead diameter and trial quantity.

Specifications to confirm

• Zirconia composition and stabilizer type

• Available bead diameters and size-distribution tolerance

• True density, bulk density, hardness, and roundness

• Wear-rate method and representative test result

• Crushing strength, surface finish, and fragment control

• Cleaning, magnetic separation, inspection, and traceability

• Net package weight, liner, pallet method, MOQ, and lead time

The bead diameter must remain compatible with the separator and slurry flow. Media that is too large can reduce contact frequency. Media that is too small can increase hydraulic resistance or escape through an unsuitable screen. The practical choice balances energy transfer, circulation, separator safety, and final particle size.

How to conduct a meaningful mill trial

Compare media with the same pigment concentrate, resin system, solvent balance, batch size, mill loading, rotor speed, and cooling conditions. Record dispersion time, grind gauge, particle-size distribution, viscosity, temperature, color strength, gloss, media loss, fragments, and cleaning time.

Inspect the beads after the test for chipping, flattening, fragments, discoloration, or unusual surface damage. Analyze product samples with the same methods. If contamination is critical, define the measured elements, sampling procedure, detection limit, and acceptance criteria before milling begins.

Quality control for repeat orders

Incoming inspection can include package condition, lot label, bead-size sampling, visual roundness, density checks, and a short production comparison. Ask whether raw-material purity, forming, sintering, polishing, washing, and final inspection follow documented procedures. Retain an approved reference sample for tightly controlled products.

Supply consistency also depends on packaging and logistics. Heavy ceramic media needs strong liners, suitable pails or bags, pallet weight control, moisture protection, and clear lot identification. For ongoing use, discuss forecast volume, safety stock, lead time, and change-control practices.

Questions for the supplier

1. Which zirconia composition and stabilizer are used?

2. Which bead size fits the separator and target particle size?

3. How is wear measured, and can a sample certificate be supplied?

4. How are cleaning, contamination control, and lot traceability managed?

5. What sample quantity, MOQ, packaging, and delivery time are available?

Buying recommendation

Select the smallest practical bead that the separator and high-viscosity flow can handle reliably. Lock the approved size range, color-cleanliness requirement, wear test, packaging method, and incoming inspection plan before repeat production orders.

Send the formulation, mill model, separator gap, current media, feed and target particle size, viscosity, solids content, contamination limit, trial quantity, annual demand, and delivery destination. The supplier can then recommend a bead size and prepare a technically useful quotation.
